Dailun

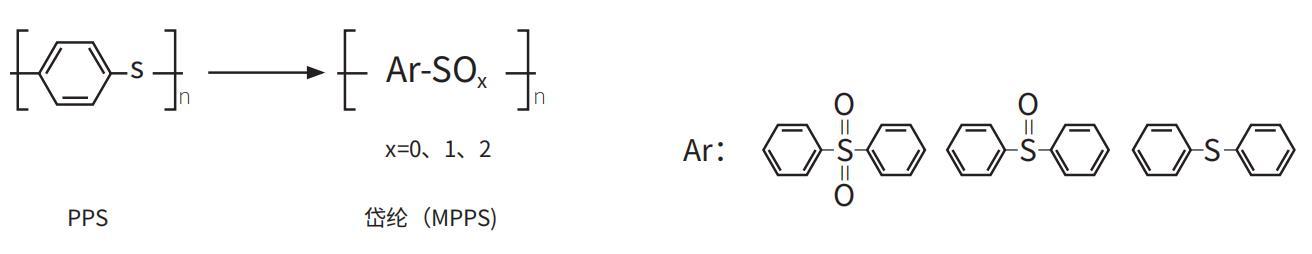

Modified polyphenylene sulfide(MPPS ) fiber,which is based on polyphenylene sulfide fiber rawmaterials by structural modification. Is an innovative, with international advanced level of high-techachievements.
Key words:
Dailun
Category:
Product Description
Modified polyphenylene sulfide fiber
Modified polyphenylene sulfide(MPPS ) fiber,which is based on polyphenylene sulfide fiber rawmaterials by structural modification. Is an innovative, with international advanced level of high-techachievements.
Modified polyphenylene sulfide(MPPS ) fiber,which is based on polyphenylene sulfide fiber rawmaterials by structural modification. Is an innovative, with international advanced level of high-techachievements.
The modified PPS fiber not only retains the inherent mechanical properties, chemical stability, flame retardant, insulation properties of PPS, its antioxidant properties, high temperature resistance has greatlyimproved. Maximum operating temperature: Increased from 204℃ to 260℃.
DMTA Test Analysis
DMTA Test Analysis
Conventional PPS fiber in 130℃ when the glass transformation, fiber from the glass state to high-bounce state, high molecular chain segment movement, fiber stretch deformation; With stable mechanical properties.
SEM Test Analysis
SEM Test Analysis
The fiber thickness is uniform, the surface is smooth, and the fiber diameter is 12-14μm.
Physical Characteristics
Physical Characteristics
| Items | Unit | Value | Test Method |
| Breaking strength | cN/dtex | ≥3.0 | GB/T14337 |
| Elongation at Break | % | 15-20 | GB/T14337 |
| Density | g/cm³ | 1.4 | |
| Moisture Regain | % | 0.5-2 | GB/T6503 |
| Glass Transition Temp. | ℃ | 无 | DMA |
| Shrinkage at 300℃ ,15min | % | ≤1.2 | FZ/T50004 |
| Initial Tecomposition Temp. | ℃ | 450 | TG-DTG |
| Long-term Use Temp. | ℃ | 230 | |
| Short-term Use Temp. | ℃ | 260 | |
| Flame Phenomenon | No droplet, no shrinkage, leaving the fire from extinguishing | ||
Excellent antioxidant properties
MPPS fiber has excellent antioxidant properties, in 65% nitric acid, 65 ℃ environment after cooking for 24 hours, 27% hydrogen peroxide solution, 93 ℃ environment after cooking for 24 hours, still has 85% fracture strength retention rate. Air environment (oxygen content 21%) 250 thigh temperature baking for 24 hours, strength retention rate of more than 90%.
Excellent high temperature resistance
MPPS has excellent high temperature resistance, with thermal decomposition temperatures 450 ℃ respectively. MPPS can be used for long periods of time below 230℃ , can also be used for a long time at 250℃ , and instantaneously use temperatures of up to 260 ℃ .MPPS has excellent dimensional stability in hot water or high temperature air, with boiling water shrinkage of less than 0.2%, and heat shrinkage at 230℃ and 250℃ respectively, 0.7% and 1.2%, far less than the interstitity of aramid and other fibers.
Excellent chemical resistance
MPPS is insoluble in any known organic solvent, after immersion in commonly used organic solvents such as N, N dimethylmethamphetamine, chloroform, dimethyl methylene and other liquids, the mechanical properties increased, the performance of organic solvents is outstanding. In acid and alkali has a better tolerance, in the strong acid solution, its tolerance is slightly better than interstitated aramid, in the strong alkali solution, its tolerance is slightly lower than interstitated aramid, higher than polyamide fiber.
MPPS fiber has excellent antioxidant properties, in 65% nitric acid, 65 ℃ environment after cooking for 24 hours, 27% hydrogen peroxide solution, 93 ℃ environment after cooking for 24 hours, still has 85% fracture strength retention rate. Air environment (oxygen content 21%) 250 thigh temperature baking for 24 hours, strength retention rate of more than 90%.
Excellent high temperature resistance
MPPS has excellent high temperature resistance, with thermal decomposition temperatures 450 ℃ respectively. MPPS can be used for long periods of time below 230℃ , can also be used for a long time at 250℃ , and instantaneously use temperatures of up to 260 ℃ .MPPS has excellent dimensional stability in hot water or high temperature air, with boiling water shrinkage of less than 0.2%, and heat shrinkage at 230℃ and 250℃ respectively, 0.7% and 1.2%, far less than the interstitity of aramid and other fibers.
Excellent chemical resistance
MPPS is insoluble in any known organic solvent, after immersion in commonly used organic solvents such as N, N dimethylmethamphetamine, chloroform, dimethyl methylene and other liquids, the mechanical properties increased, the performance of organic solvents is outstanding. In acid and alkali has a better tolerance, in the strong acid solution, its tolerance is slightly better than interstitated aramid, in the strong alkali solution, its tolerance is slightly lower than interstitated aramid, higher than polyamide fiber.
Product specifications mainly include：
1.56(dtex)X51(mm)
1.56(dtex)X65(mm)
2.22(dtex)X51(mm)
2.22(dtex)X65(mm)
3.33(dtex)X51(mm)
3.33(dtex)X65(mm)
Other specifications need to be customized.
MPPS Filter performance
Test report attachment
1.56(dtex)X51(mm)
1.56(dtex)X65(mm)
2.22(dtex)X51(mm)
2.22(dtex)X65(mm)
3.33(dtex)X51(mm)
3.33(dtex)X65(mm)
Other specifications need to be customized.
MPPS Filter performance
Test report attachment
| Characteristic | Test items | Unit | Measured value | Remarks | |
| Morphological characteristics | Mass per unit area | g/㎡ | 899 | ||
| Mass deviation per unit area | % | -3.7，+3.7 | |||
| Thickness | mm | 3.60 | |||
| Thickness deviation | % | -5.8，+7.3 | |||
| Powerful characteristics | Breaking strength | Radial | N/5×20cm | 739 | |
| Weft | 1351 | ||||
| Elongation at break | Radial | % | 6.2 | ||
| Weft | 26.9 | ||||
| Breathability | Air permeability | m³/ ㎡ .min | 11.90 | ||
| Air permeability deviation | % | -7.4，+2.0 | |||
| Oxygen resistance | Breaking strength | Radial | N/5×20cm | 607 | Hydrogen peroxide 30% room temperature 24h |
| Weft | 1374 | ||||
| Elongation at break | Radial | % | 9.5 | ||
| Weft | 26.9 | ||||
| Strength retention rate | Radial | % | 82.1 | ||
| Weft | 101.7 | ||||
| Oxygen resistance | Breaking strength | Radial | N/5×20cm | 726 | Hydrogen peroxide 30%50℃ 24h |
| Weft | 1360 | ||||
| Elongation at break | Radial | % | 8.3 | ||
| Weft | 22.5 | ||||
| Strength retention rate | Radial | % | 98.2 | ||
| Weft | 100.7 | ||||
| Oxygen resistance | Breaking strength | Radial | N/5×20cm | 655 | Hydrogen peroxide 30%85℃ 24h |
| Weft | 1317 | ||||
| Elongation at break | Radial | % | 10.2 | ||
| Weft | 15.4 | ||||
| Strength retention rate | Radial | % | 88.8 | ||
| Weft | 97.5 | ||||
| Acid resistance | Breaking strength | Radial | N/5×20cm | 708 | Sulfuric acid 60%85℃ 24h |
| Weft | 1318 | ||||
| Elongation at break | Radial | % | 7.9 | ||
| Weft | 26.9 | ||||
| Strength retention rate | Radial | % | 96.5 | ||
| Weft | 97.5 | ||||
| Nitric acid resistance | Breaking strength | Radial | N/5×20cm | 781 | Nitric acid 60%50℃ 24h |
| Weft | 1635 | ||||
| Elongation at break | Radial | % | 13.5 | ||
| Weft | 20.9 | ||||
| Strength retention rate | Radial | % | 105.7 | ||
| Weft | 121.0 | ||||
| Alkali resistance | Breaking strength | Radial | N/5×20cm | 728 | NaOH40%85℃ 24h |
| Weft | 1546 | ||||
| Elongation at break | Radial | % | 8.8 | ||
| Weft | 19.7 | ||||
| Strength retention rate | Radial | % | 98.5 | ||
| Weft | 114.4 | ||||
